New CX5010 View larger

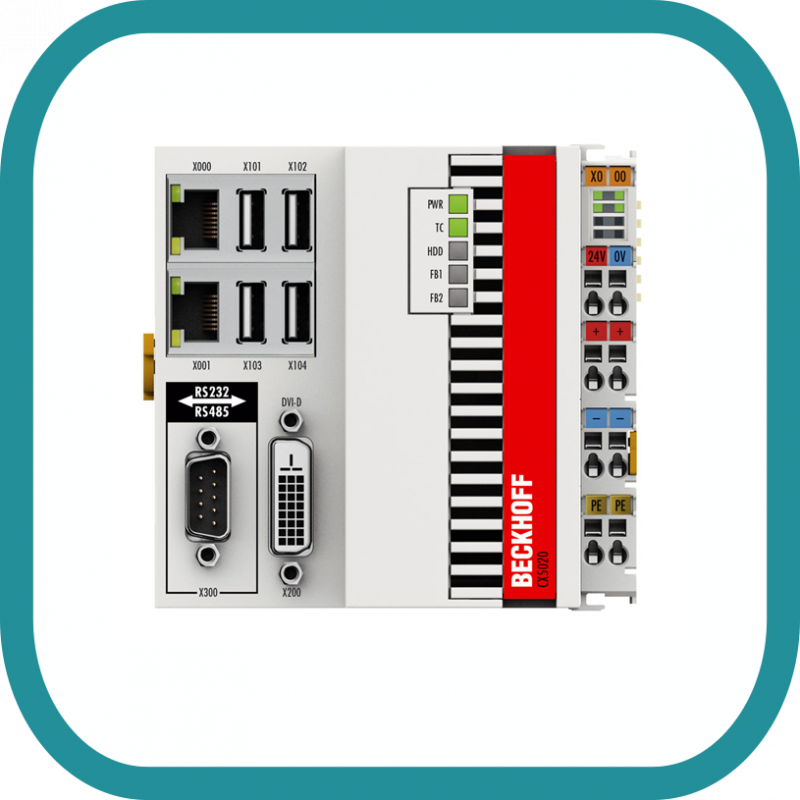

CX5010-0112 Beckhoff CPU-Modul



• Processor Intel® Atom™ Z510 processor, 1.1 GHz frequency
• Internal Flash memory 128 MB Compact Flash card (optionally extendable)
• Internal main memory 512 MB RAM (interior, not expandable)

CX50x0 manual

More details

199 000,00 ₽

Data sheet

Weight 0.575 kg.
Dimensions 100 мм x 106 мм x 92 мм

More info

Interfaces 2 x RJ 45, 10/100/1000 Mbit/s, DVI-D, 4 x USB 2.0
Diagnostics LED 1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock Internal clock with battery backup for time and date (battery replaceable)
Operating system Microsoft Windows CE or Microsoft Windows Embedded Standard
Control software TwinCAT PLC runtime or TwinCAT NC PTP runtime
Power supply 24 V DC (-15 %/+20 %)
Current supply I/O terminals 2 A
Max. power loss 12 W (including system interfaces)
Dielectric strength 500 Veff (supply/internal electronics)
Operating/storage temperature -25 °C ... +60 °C/-40 °C ... +85 °C
Relative humidity 95 % no condensation
Vibration/shock resistant conforms to EN 60068-2-6/EN 60068-2-27/ 29
EMC immunity/emission conforms to EN 61000-6-2 / EN 61000-6-4
Protection class IP 20
