New HC-200 View larger

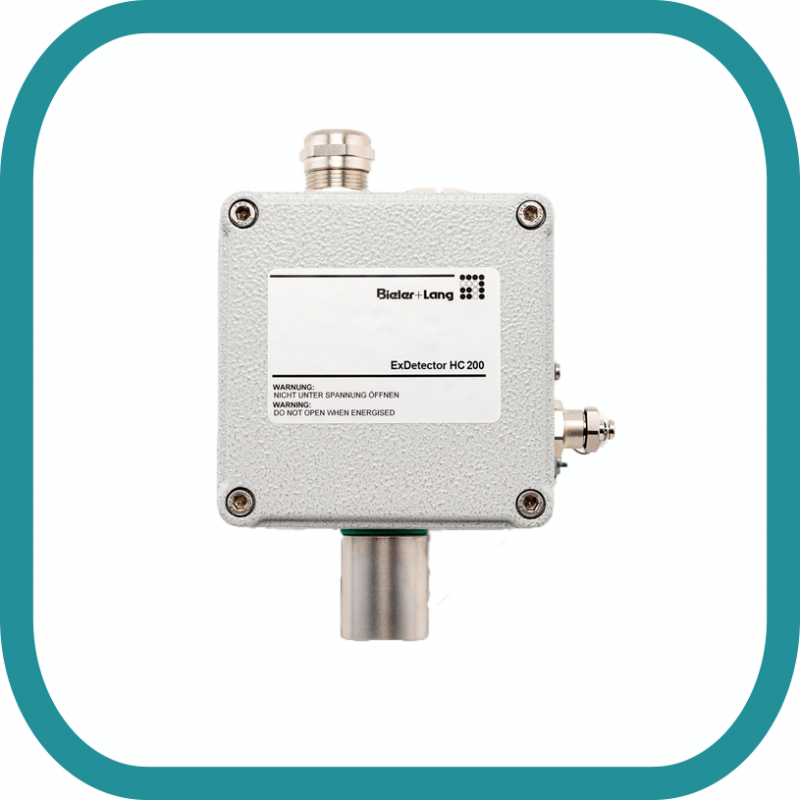

ExDetector HC-200 Gas Detector Bieler + Lang

30001009

New

Monitoring combustible gases and vapours
Measurement range: 0 ... 100 % LEL
Measurement principle: catalytic combustion (thermal effect)
Linear measurement signal 4 ... 20 mA
Integral switched outputs for:
- Alarm 1 (pre-alarm)
- Alarm 2 (main alarm)
- Sensor defect
One-man calibration (using optional calibrator)
Intended for use in Ex-zone 2



pdf20 HC-200 Data Sheet

More details

59 000,00 ₽

Data sheet

Weight 0,8 kg
Voltage 18 ... 28 VDC

More info

Detection gases Combustible gases / vapours 1)
Measurement principle: Catalytic combustion (thermal effect)
Response time (T90): Dependant on detection gas (typically < 30 sec)
Max. flow speed: 6 m/sec
Temperature range: -20 °C ... +55°C
Air pressure range: 800 ... 1100 hPa
Humidity range: 20 ... 90 % RH
Storage conditions: -25°C to 60°C
Air pressure: 800 hPa to 1100 hPa
Humidity: 20% RH to 90% RH
