New TR-A/V/VMT View larger

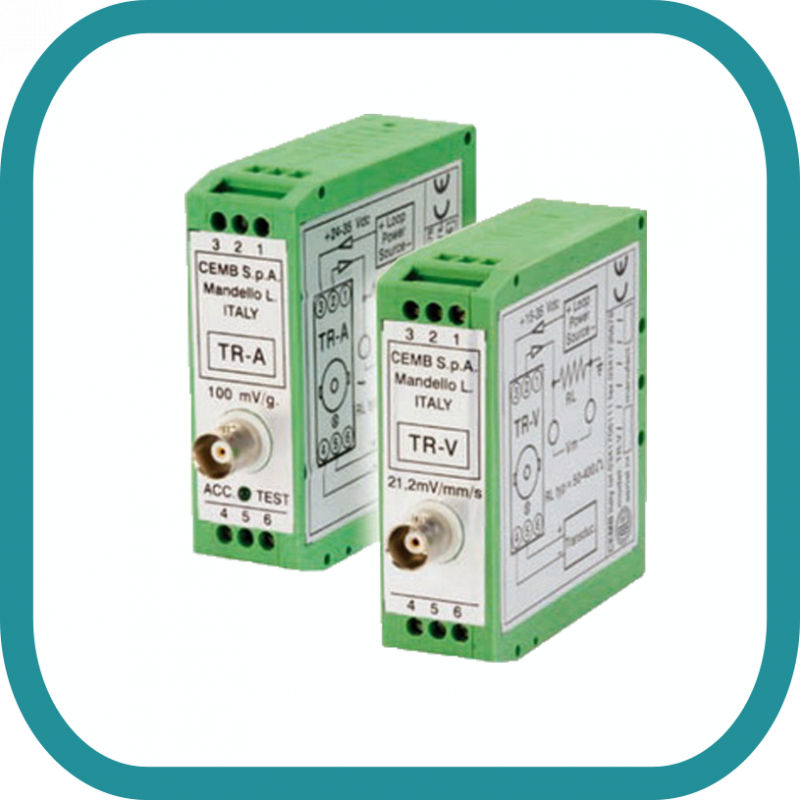

TR-A / V / VMT Vibration transmitter CEMB



Transmitter with provision for fastening to a DIN guide

• TR-A interfaceable with accelerometers with a sensitivity of 100 mV/g (TA-18 – TA-18/S)

• TR-V interfaceable with velocimeters with a sensitivity of 21.2 mV/mm/s (T1-40 – T1-40V –   T1-40BF – T1-38 – T1-38V – T1-38BF)

• TR-VMT interfaceable with velomitor TV-22 (3,94 mV/mm/s)

pdf20 TR-A/V/VMT data sheet

More details

84 900,00 ₽

Data sheet

Voltage 24...35 VDC

More info

24 VDC nominal

18-30 VDC for 2-wire version

24-35 VDC for 3-wire version

External connections:

• Terminal strip for connection to a PLC/DCS (2- or 3-core screened cable, max. cross-section 2.5mm²)

• Terminal strip for connection to a transducer (2- or 2-core screened cable, max. cross-section 2.5mm²)

• BNC for connection to an analyser

Operating temperature range 35°C ÷ +70°C

Type of measurement: Absolute vibration

Dynamic performance 5 ÷ 10.000Hz

Linearity ± 2% over the entire measurement range and within the operating temperature limits

Insulation  ≥10⁸ Ω between signals and container
