New T1-40 View larger

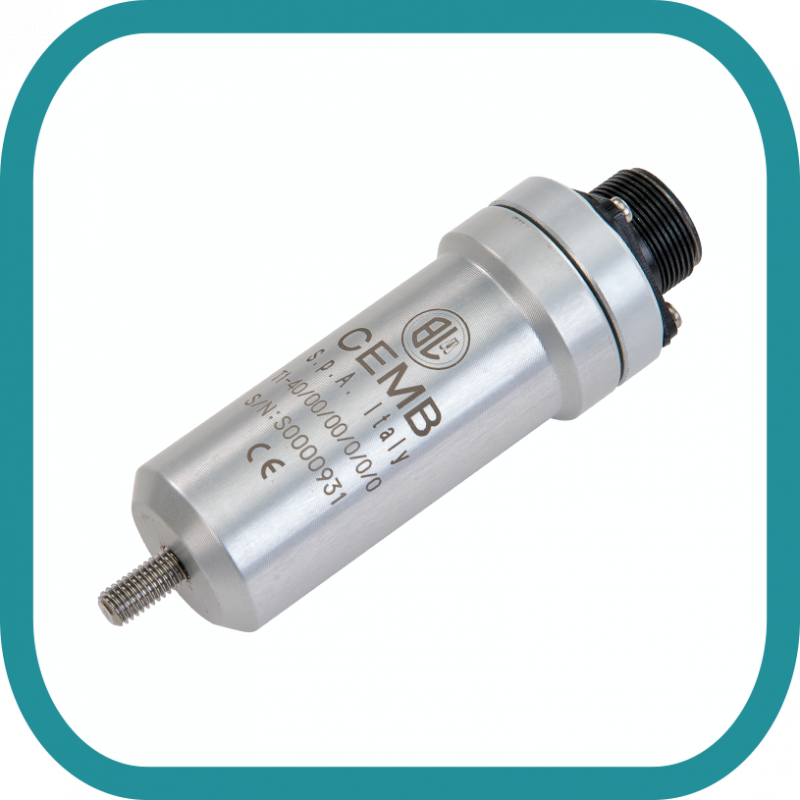

T1-40 absolute vibration transducer CEMB



The T1-40 transducer measures absolute vibration of any rotating machine support. It supplies a voltage proportional to the vibration speed directly interfaceable with a device that can process the signal (TR-V, TRAL-V, TM1, TDSP)

The T1-40 electrodynamic transducer consists of a suspended plate coil immersed in the magnetic field of a permanent magnet.

pdf20 T1-40 data sheet

More details

89 900,00 ₽

Data sheet

Weight 0,3 kg
Thread M8 X 1,25

More info

Sensitivity 21.2 mV/mm/s

Composition body in anodised aluminium or AISI 316L stainless steel

External connections 5 or 7 pin MIL standard connector

Operating temperature range

-40° C ÷ 100°C

-40° C ÷ 170°C HT


Type of measurement seismic (absolute vibration)

Measurement direction omnidirectional

Measurement range ± 1 mm

Dynamic range 10÷1000 Hz

Resonance frequency 12 Hz

Transverse sensitivity < 7%

Output impedance 1K Ω a 25°C
