VTV122 View larger

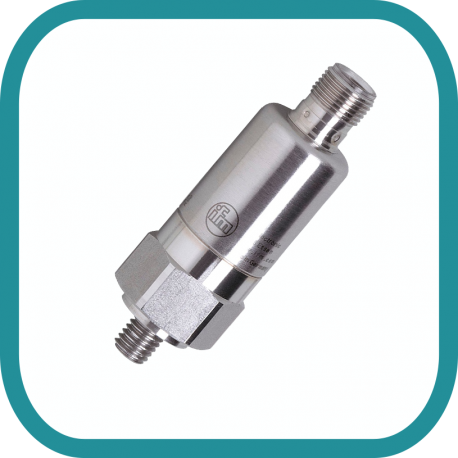

VTV122 IFM electronic Vibration sensor

40001002

New

PGGB-EF800
• Application: Vibration transmitter to ISO 10816
• Measuring range of vibration: 0...25 mm/s; (RMS)

• Frequency range: 10...1000 Hz
• Total number of inputs and outputs: 1
• Analog current output: 4...20 mA




pdf20 VTV122 operating

More details

39 900,00 ₽

Data sheet

Voltage 9.6...32 VDC

More info

Max. load: < (Ub - 9,6 V) x 50 Ω; Ub = 24 V: 720 Ω

Measuring/setting range

Measuring range of vibration: 0...25 mm/s; (RMS)

Frequency range: 10...1000 Hz

Number of measurement axes: 1

Measuring error: < ± 3 % of the final value

Repeatability: < 0,5 % of the final value

Linearity deviation: 0,25 %

Operating conditions

Ambient temperature: -30...125 °C

Note on ambient temperature

UL application: < 80 °C

Storage temperature: -30...125 °C

Protection: IP 67; IP 68; IP 69K
