New VTV12A View larger

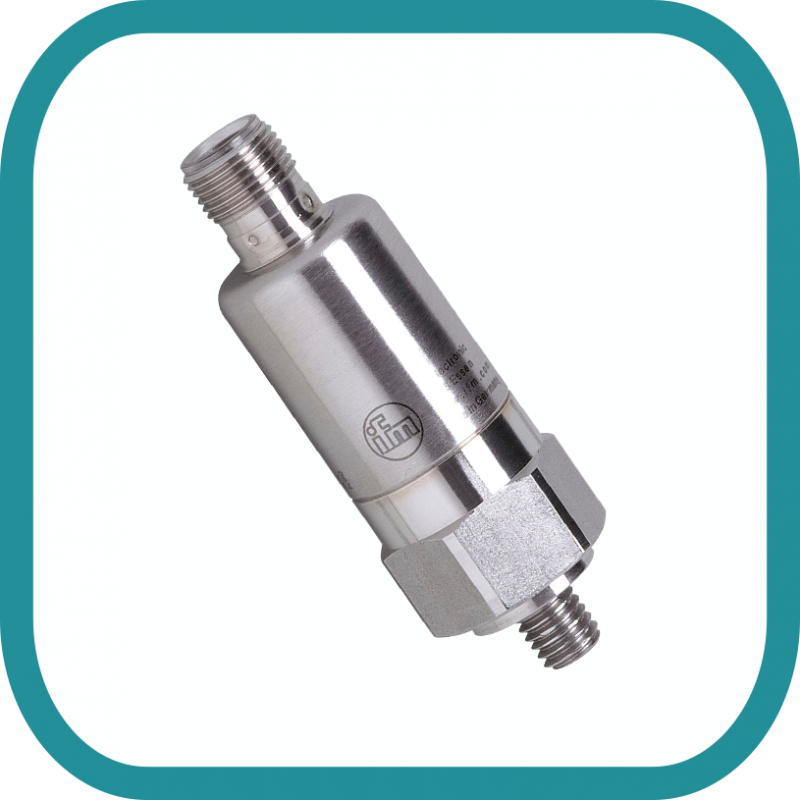

VTV12A Vibration sensor IFM electronic

40001003

New

• Application: Vibration transmitter to ISO 10816
• Measuring range of vibration: 0...25 mm/s; (RMS)
• Frequency range: 10...1000 Hz
• Total number of inputs and outputs: 1
• Analog current output: 4...20 mA




pdf20 VTV12A instruction

More details

42 900,00 ₽

Data sheet

Voltage 9.6...32 VDC

More info

Max. load: < (Ub - 9,6 V) x 50 Ω; Ub = 24 V: 720 Ω

Measuring/setting range

Measuring range of vibration: 0...25 mm/s; (RMS)

Frequency range: 10...1000 Hz

Number of measurement axes: 1

Measuring error: < ± 3 % of the final value

Repeatability: < 0,5 % of the final value

Linearity deviation: 0,25 %

Operating conditions

Ambient temperature: -20...60°C

Note on ambient temperature

Storage temperature: -20...60°C

Protection: IP 67; (when used outside the hazardous area: IP 69K)
