VKV021 View larger

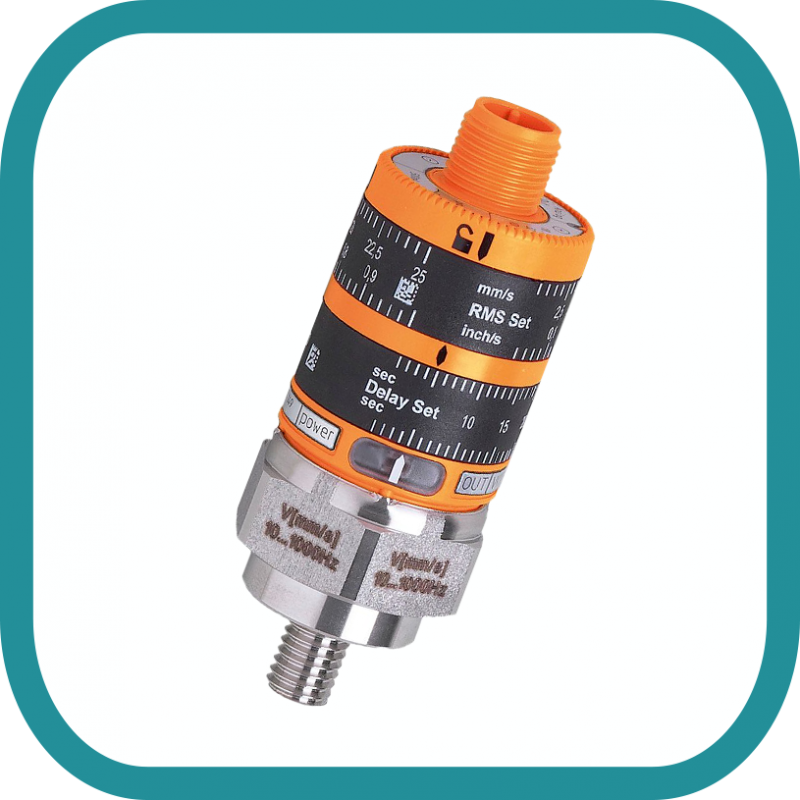

VKV021 IFM Electronic Vibration monitor with switch point setting

40001007

New

•Reliable permanent monitoring of the overall vibration to DIN ISO 10816
•Switching output with adjustable switch point and response delay

•Simple switch point setting by means of two setting rings allowing optimum reading
•With analogue current output for vibration velocity
•Clearly visible LEDs for indicating switching status and operation



pdf20 VKV021 manual

More details

29 900,00 ₽

Data sheet

Weight 0.114 kg.
Thread M8 x 1,25
Voltage 18...32 VDC

More info

Measuring range of vibration: 0...25 mm/s; (RMS)
Frequency range: 10...1000 Hz

Current consumption: < 50 mA
Protection class: III
Sensor type: microelectromechanical system (MEMS)
Total number of inputs and outputs: 2
Number of digital outputs: 1;
Number of analogue outputs: 1
Output signal: switching signal; analogue signal
Electrical design: PNP
Output function: NC
Max. voltage drop switching output: 2 VDC
Permanent current rating of switching output DC: 500 mA
Analogue current output: 4...20 mA
Max. load: 500 Ω
Short-circuit protection: yes
Overload protection: yes
Measuring error: < ± 3 % of the final value
Switch point accuracy: < ±4 % of the final value
Repeatability: < 0,5 % of the final value
Linearity deviation: 0,25 %
Response time: 1...60 s
Adjustment of the switch point   setting ring
Ambient temperature: -25...80°C
Note on ambient temperature
UL application: < 80 °C

Storage temperature: -25...80°C
Protection: IP 67
