New Metrix 5485C-006 View larger

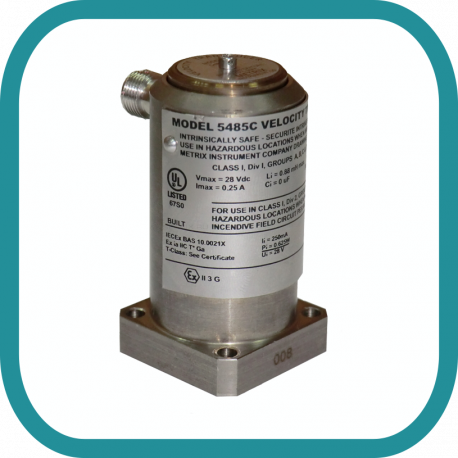

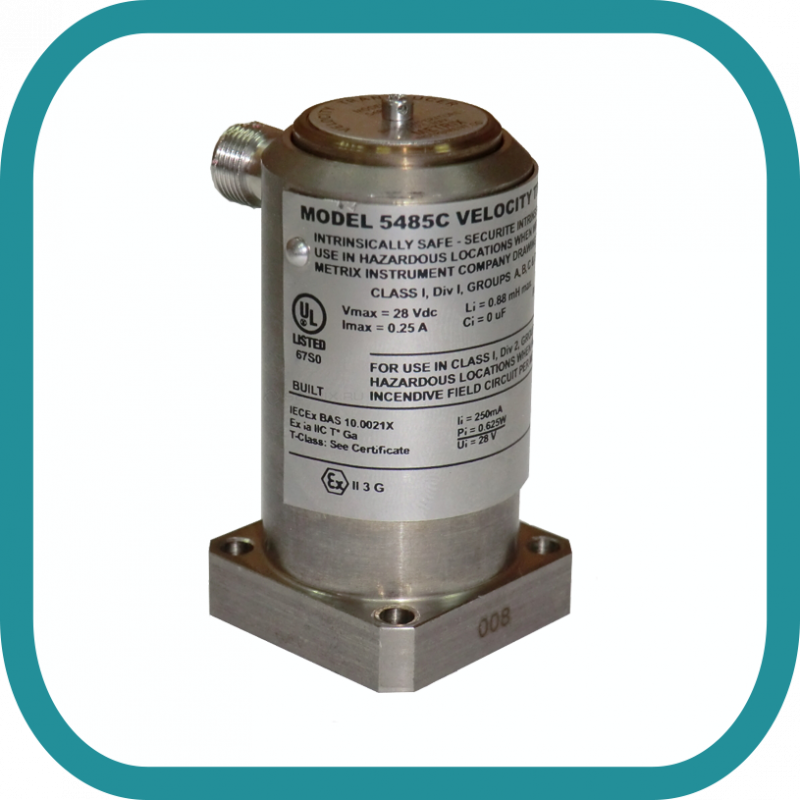

5485C-006 Metrix Velocity Sensor



• Designed for elevated temperatures up to 375°C
• Self-genera ng, no power required
• Stainless steel housing
• Eliminates fric on-prone air damping
• Analog performance delivers excellent resolutuon
• Approved for use in hazardous areas
• Available with integral or removable cable

pdf20 Metrix 5485C-006 datasheet.pdf

More details

280 900,00 ₽

Data sheet

Weight 0,2 kg

More info

Sensitivity axis direction: any
Sensitivity: 5.7 mV / mm / s ± 5%
Transverse sensitivity: less than 10%
Temperature sensitivity: less than 0.02% / ° C
Vibration Limit: 1.8mm Peak-Peak
Ultimate Acceleration: 50g
Temperature range: -54 ... + 375 ° С
Frequency range: 15 ... 2000 Hz
