New LSB-3000 View larger

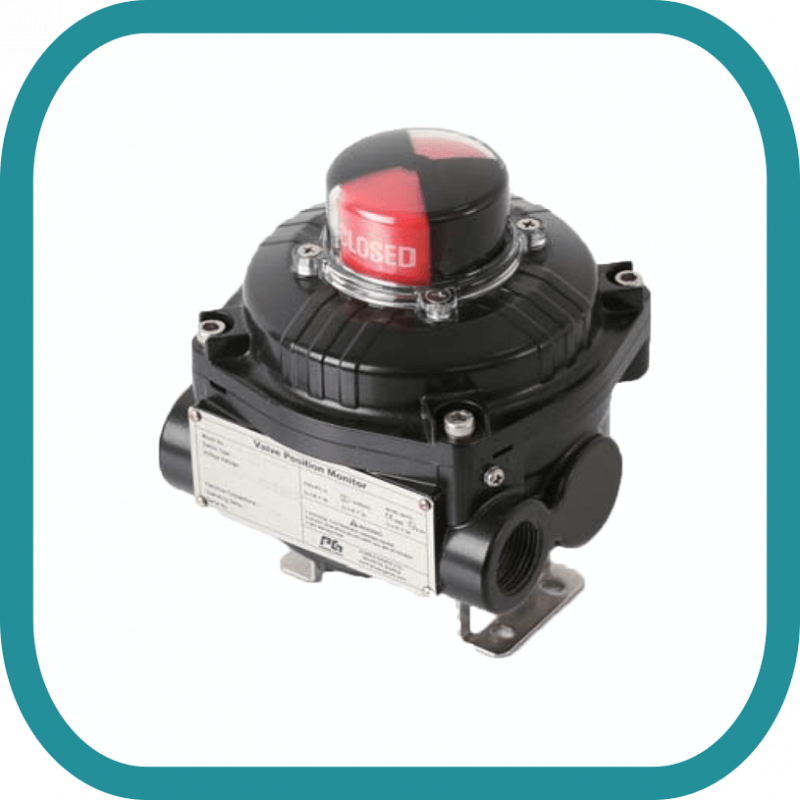

Valve Position Monitor LSB-3000 Power-Genex

50001011

New

Operating temperature -40 ~ +100°C

Electrical Connections PF 3/4, NPT 3/4, PF 1/2, NPT 1/2, M20 x 1.5

Stroke / Angle Linear type : 10 - 200mm | Rotary type : 0 - 90°

Body Material Aluminum die-cast/powder-painted


pdf20 LSB Power-Genex Datasheet

More details

18 900,00 ₽

Data sheet

Weight 0.8 kg

More info

Flameproof ATEX / IECEx / KC Exd IIC

Rugged aluminum die-cast housing or optionally stainless steel 316 housing

Optionally dual beacons or bottom indicator

Various switches and sensors (available with Honeywell / P&F / Westlock / Go switch)

NAMUR mounting shaft or fork lever shaft adjustable for a non-NAMUR pneumatic actuator

4 x SPDT mechanical limit switch

2 x P&F proximity sensor

2 x Hermetically-sealed proximity sensor

2 x GO switch

4 - 20mA output position transmitter

IP68
