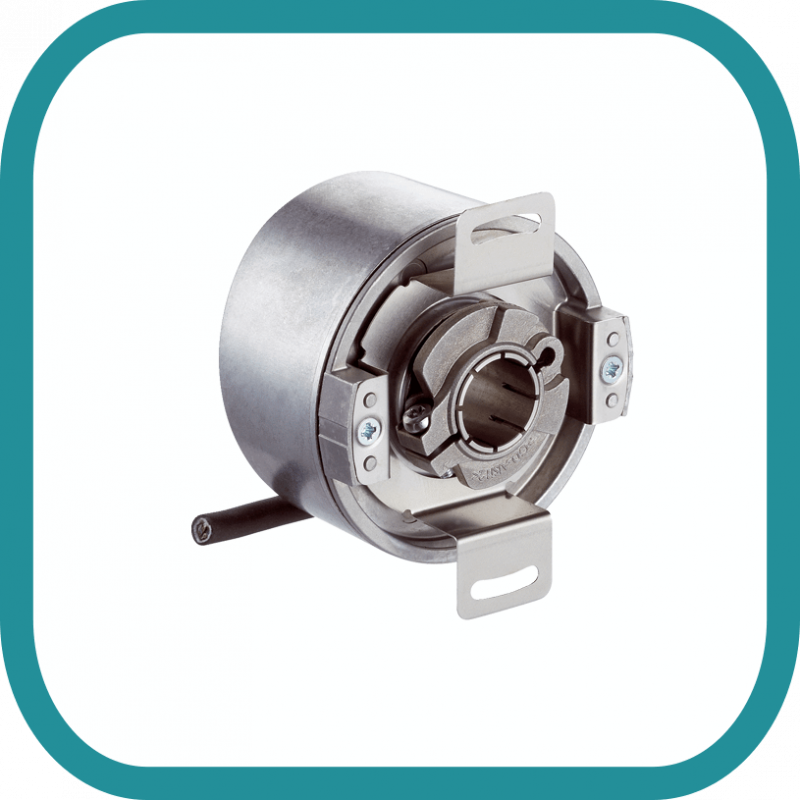

VFS60B-TDCK01024 View larger

Motor feedback systems rotary incremental VFS60B-TDCK01024 SICK

50001013

New

Part no.: 1065616

Number of lines per revolution   1,024

Reference signal, number1

Reference signal, position            90° electric, logically gated with A and B

Measuring step deviation ± 0.01°

Connection type     Cable, 8-wire, radial, 1.5 m


pdf20 VFS60B-TDCK01024 Data sheet

More details

46 900,00 ₽

Data sheet

Voltage 10 V ... 32 V

More info

Power consumption  40 mA

Maximum output frequency  ≤ 600 kHz

Maximum load current  ≤ 30 mA

Operating temperature range –30 °C ... +100 °C

Storage temperature range –40 °C ... +100 °C, without package

Relative humidity/condensation 90 %, condensation of the optical scanning not permitted

Resistance to shocks 70 g, 6 ms

Frequency range of resistance to vibrations  30 g, 10 Hz ... 2,000 Hz

Enclosurerating IP65
