New BRQM400-DDTA View larger

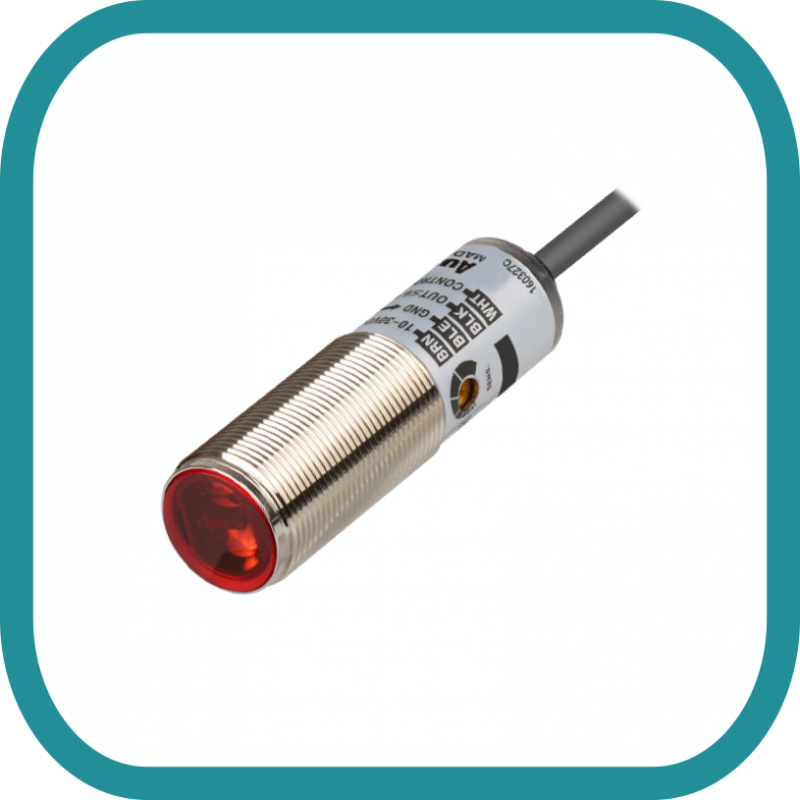

BRQM400-DDTA Photo Sensor

50001003

New

• 400mm Sensing Distance

• Sensor Photo,

• Metal body,

• Diffuse reflective,

• Light & Dark On,

• PNP Output


pdf20 BRQ manual

More details

13 500,00 ₽

Data sheet

Weight 0.07 kg.
Dimensions 16,8 mm x 63 mm
Voltage 10-30 В DC ±10%

More info

Sensing type: Diffuse reflective type

Sensing distance: 400mm

Sensing target: Opaque, Translucent material

Light source: Red LED 660nm)

Response time   Max.: 1ms

Current consumption: Max. 30mA

Sensitivity adjustment: Sensitivity adjuster

Operation mode: Selectable Light ON or Dark ON by control wire (white)

Control output:  NPN open collector

Connection type: Ø4mm, 4-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)

(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm), Selectable Light ON or Dark ON by control wire (white)

Environment Ambient temperature: -25 to 60℃, storage: -30 to 70℃

Protection structure: IP67(IEC standard)
