New BES 516-325-E4-C-PU-03 View larger

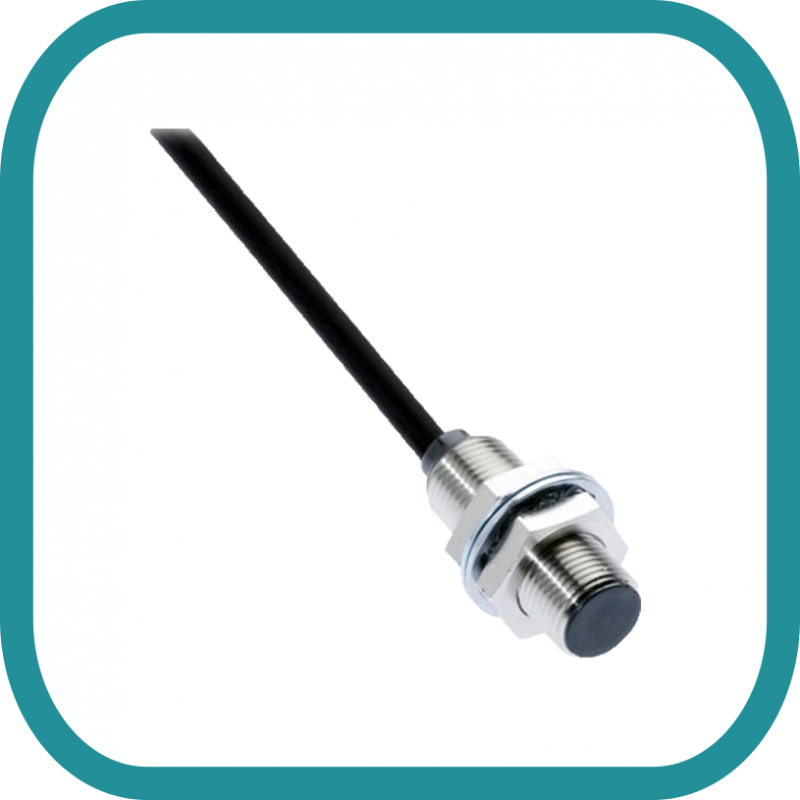

BES 516-325-E4-C-PU-03 Proximity switch sensor

50001004

New

Style: M12x1

IP rating: IP68


pdf20 BES 516-325-E4-C-03 manual

More details

5 900,00 ₽

Data sheet

Thread M12x1
Dimensions Ø 12 x 33 mm
Voltage 10-30 В DC ±10%

More info

Style: M12x1

Installation: for flush mounting

Range: 2 mm

Switching output: PNP normally open (NO)

Switching frequency: 3500 Hz

Housing material: Brass, nickel plated

Material sensing surface: PBT

Connection: Cable, 3.00 m, PUR

Ambient temperature: -25...70 °C

IP rating: IP68
