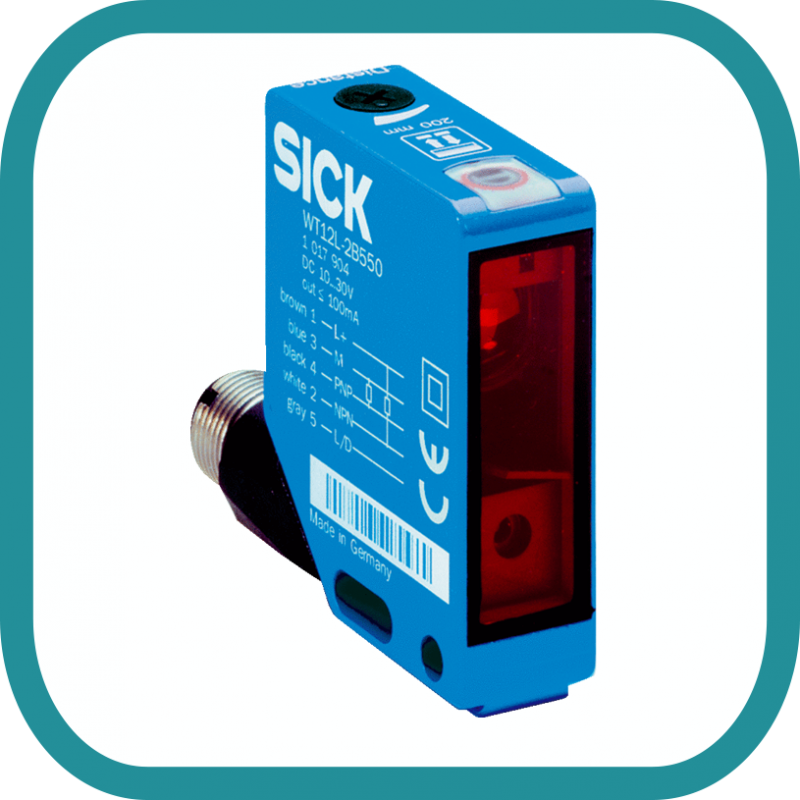

New WT12L-2B550A02 View larger

WT12L-2B550A02 Photo Sensor

50001005

New

Sensor/ detection principle: Photoelectric proximity sensor, Background suppression

• Housing design (light emission):  Rectangular

• Sensing range max.: 50 mm ... 290 mm 1)

• Focus: 100 mm




pdf20 WT12L-2B550A02 datasheet

More details

18 900,00 ₽

Data sheet

Dimensions 15 mm x 49 mm x 41,5 mm

More info

Type of light: Visible red light

Light source: Laser 2)

Light spot size (distance): Ø 0.3 mm (180 mm)

Wave length: 650 nm

Laser class: (EN 60825-1:2014, IEC 60825-1:2007) 3)

Adjustment: Potentiometer

Special applications: Detecting small objects, Detection of objects moving at high speeds
