New  Esbe VRG131 DN25 und Esbe ARA66 View larger

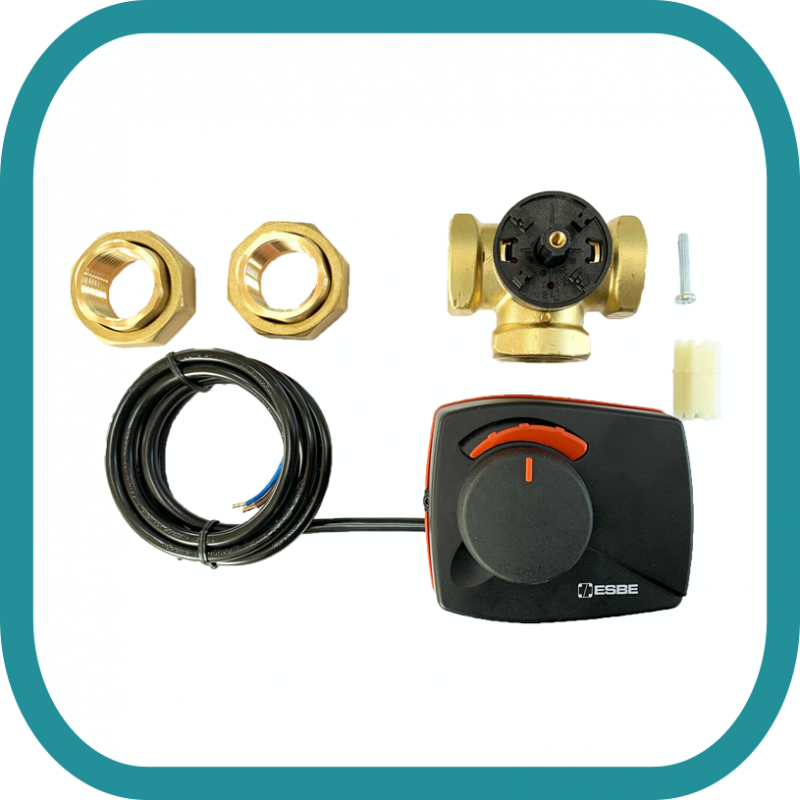

ARA661 Esbe actuator and VRG131 3-way valve

20001007

New

Esbe VRG131 DN25 and Esbe ARA661 actuator 230V 120 seconds 6 Nm

 Esbe VRG131 DN25:

• 3-way valves, suitable for mixed or zone operation.

• made of high-quality brass.

• can therefore be used in heating and cooling applications.

• Can be perfectly combined with servomotors and controllers from ESBE

More details

29 900,00 ₽

Data sheet

Weight 0.4 kg.
Voltage 230 VAC

More info

• The ARA600 model series with 3-point signal (open / close) is suitable for mixed operation. In these applications, the desired mixing ratio can be achieved using any position in the operating range of the servomotor. The compact servomotor is designed to drive mixing valves in the DN 15-50 range and has an operating range of 90 °. With the multifunction button on the front of the servomotor, this model series can also be easily operated manually.

Technical specifications

• Ambient temperature: max .: +55 ° C min .: -5 ° C

• Degree of protection IP 41, protection class II

• Power supply: 230 V: 230 ± 10% V AC, 50Hz

 • Running time 90 °: 120 s

• Torque: 6 Nm

• Power consumption: 5 W
