XHQ-PT View larger

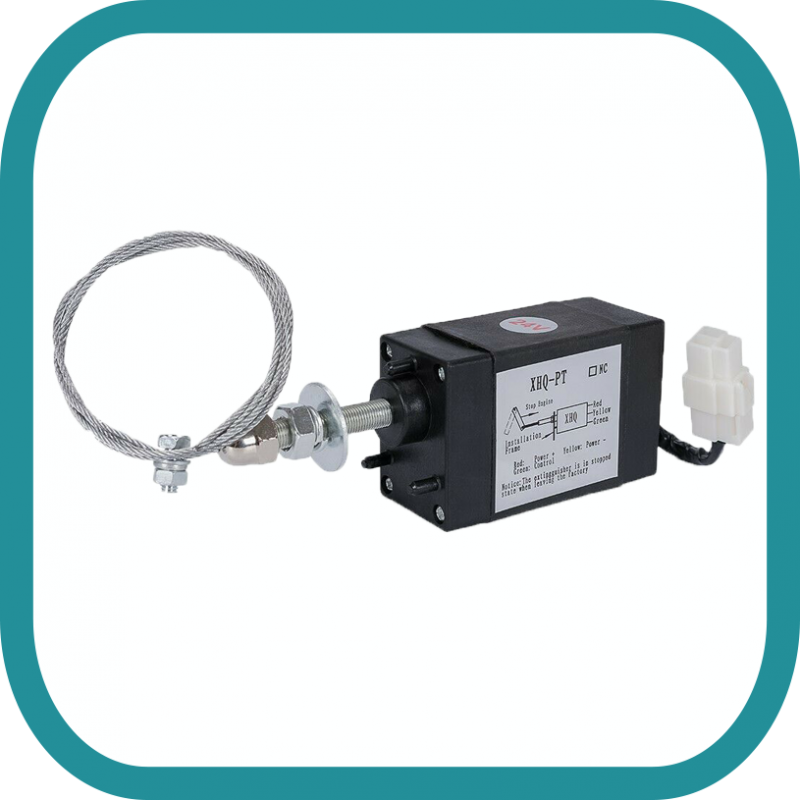

Stop Solenoid XHQ-PT Holdwell

20001013

New

• Full-load operating current: 12V-2.0A  24V-1.0A (automatically disconnect the power after the action is in place, working current < 15 mA)

• Tensile Force: 90-110 N

• Stroke: 40 mm

More details

4 900,00 ₽

Data sheet

Weight 0.395 kg.
Dimensions 230mm X 80mm X 50mm
Voltage 12V (9-15VDC) 24V (18-30V DC)

More info

Ambient temperature: -30 ℃ ~ 60 ℃

Action time: ≤ 2 seconds
